250w,260w,270w,280w,330w,solar panel,太阳能板

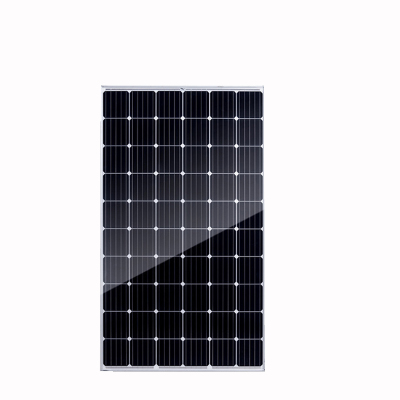

Mono-crystalline solar module               SY-M260    SY-M270    SY-M280     SY-M290
Peak Power Watts-PMAX (WP)               260W           270W         280W         290W
Power Output Tolerance-PMAX (%)       ±5%             ±5%          ±5%           ±5%
Maximum Power Voltage-VMAX (V)        30.0V            30.0V         30.0V         30.0V
Maximum Power Current-IMPP (A)        8.66A            9.00A         9.33A         9.66A
Open Circuit Voltage-VOC (V)                 35.40V          35.40V        35.40V       35.40V
Short Circuit Current-ISC (A)                   9.36A            9.72A          10.08A         10.45A
Module dimensions                                 1640x992x40mm
Standard Test Conditions STC (Air Mass AM1.5, Irradiance 1000W/m2, Cell Temperature 25℃)

Temperature specification      Materials Sheet & Packing
Temperature coeff. of(Pm):    -0.45%/℃      Solar cell Type:                     6 inches( 156*156mm)
Temperature coeff. of(Voc):    -0.35%/℃      Size of module (mm):         1640x992x40mm
Temperature coefff. of(Isc):    +0.05%/℃       Weight of module (Kg):     22
Operational Temperature:      -40℃～85℃  Glass type:                           tempered glass
Warranty     Frame:                    Anodized aluminium alloy
5 years, full product                  Junction box:     IP 65
10 years, 90% power output; 25 years(80%)       Packing (mm):           2PCS  / Carton
Please feel free to contact us for more products information


SHENZHEN JUCHENG TECH CO.,LTD.
深圳市桔成科技有限公司
