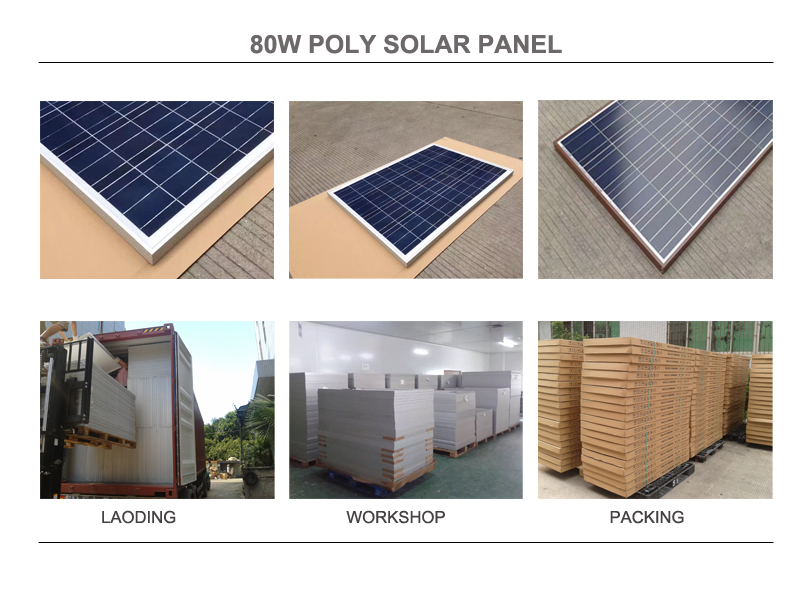

50w,60w 70w 80w 90w 100w poly solar panel,
50w,60w 70w 80w 90w 100w 多晶太阳能板，

Mono-crystalline solar module    SY-M70     SY-M80      SY-M85      SY-M90
Peak Power Watts-PMAX (WP)        70W        80W          85W         90W
Power Output Tolerance-PMAX (%)    ±5%        ±5%          ±5%          ±5%
Maximum Power Voltage-VMAX (V)    18.0V       18.0V         18.0V        18.0V
Maximum Power Current-IMPP (A)      3.88A       4.44A         4.72A         5.0A
Open Circuit Voltage-VOC (V)     21.24V      21.24V       21.24V       21.24V
Short Circuit Current-ISC (A)    4.19A       4.79A         5.09A         5.40A
Module dimensions    1192x536x35mm
Standard Test Conditions STC (Air Mass AM1.5, Irradiance 1000W/m2, Cell Temperature 25℃)

Temperature specification      Materials Sheet & Packing
Temperature coeff. of(Pm):    -0.45%/℃    Solar cell Type:             5 inches( 125*125mm)
Temperature coeff. of(Voc):    -0.35%/℃    Size of module (mm):        1192x536x35mm
Temperature coefff. of(Isc):    +0.05%/℃     Weight of module (Kg):       12
Operational Temperature:    -40℃～85℃     Glass type:                  tempered glass
Warranty     Frame:                  Anodized aluminium alloy
5 years, full product             Junction box:                 IP 65
10 years, 90% power output; 25 years(80%)       Packing (mm):               2PCS  / Carton
Please feel free to contact us for more products information
